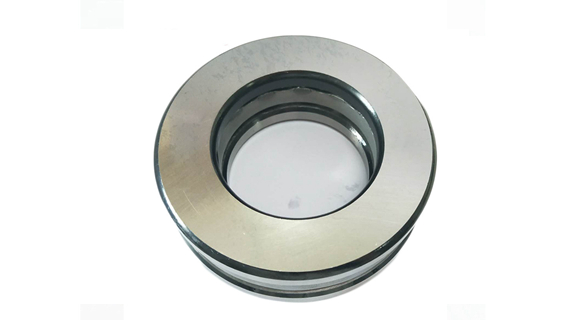

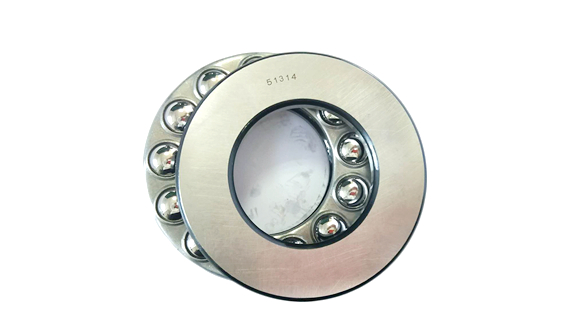

51314 Thrust Ball Bearing

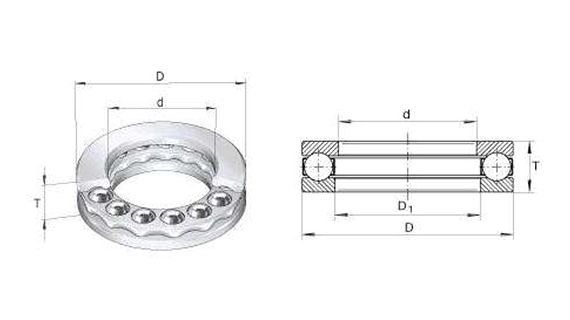

Bearing No.	Inner Dia(d)		Outer Dia(D)		H HEIGHT
Bearing No.	MM	INCH	MM	INCH	MM	INCH
51120	100	3.937	135	5.315	25	0.984
51122	110	4.3307	145	5.7087	25	0.984
51124	120	4.7244	155	6.1024	25	0.984
51126	130	5.1181	170	6.6929	30	1.181
51128	140	5.5118	180	7.0866	31	1.22
51130	150	5.9055	190	7.4803	31	1.22
51132	160	6.2992	200	7.874	31	1.22
51134	170	6.6929	215	8.4646	34	1.339
51136	180	7.0866	225	8.8583	34	1.339
51138	190	7.4803	240	9.4488	37	1.457
51140	200	7.874	250	9.8425	37	1.457
51144	220	8.6614	270	10.6299	37	1.457
51148	240	9.4488	300	11.811	45	1.772
51152	260	10.2362	320	12.5984	45	1.772
51156	280	11.0236	350	13.7795	53	2.087
51160	300	11.811	380	14.9606	62	2.441
51164	320	12.5984	400	15.748	63	2.48
51168	340	13.3858	420	16.5354	64	2.52
51172	360	14.1732	440	17.3225	65	2.559
51176	380	14.9606	460	18.1102	65	2.559
51180	400	15.748	480	18.8976	65	2.559
51184	420	16.5354	500	19.685	65	2.559
51220	100	3.937	150	5.9055	38	1.4961
51222	110	4.3307	160	6.2992	38	1.4961
51224	120	4.7244	170	6.6929	39	1.5354
51226	130	5.1181	190	7.4803	45	1.7717
51228	140	5.5118	200	7.874	46	1.811
51230	150	5.9055	215	8.4646	50	1.9685
51232	160	6.2992	225	8.8583	51	2.0079
51234	170	6.6929	240	9.4488	55	2.1654
51236	180	7.0866	250	9.8425	56	2.2047
51238	190	7.4803	270	10.6299	62	2.4409
51240	200	7.874	280	11.0236	62	2.4409
51244	220	8.6614	300	11.811	63	2.4803
51248	240	9.4488	340	13.3858	78	3.0709
51252	260	10.2362	360	14.1732	79	3.1102
51256	280	11.0236	380	14.9606	80	3.1496
51260	300	11.811	420	16.5354	95	3.7402
51264	320	12.5984	440	17.3228	95	3.7402
51268	340	13.3858	460	18.1102	96	3.7795
51272	360	14.1732	500	19.685	110	4.3307
51276	380	14.9606	520	20.4724	112	4.4094
51280	400	15.748	540	21.2598	112	4.4094
51284	420	16.5354	580	22.8346	130	5.1181
51288	440	17.3228	600	23.622	130	5.1181
51292	460	18.1102	620	24.4094	130	5.1181
51296	480	18.8976	650	25.5905	135	5.315
512/500	500	19.685	670	26.378	135	5.315
512/530	530	20.8661	710	27.9528	140	5.5118
512/560	560	22.0472	750	29.5276	150	5.9055
512/600	600	23.622	800	31.4961	160	6.2992
512/630	630	24.803	820	33.4645	175	6.89
512/670	670	26.3779	900	35.433	180	7.0866
512/710-M	710	27.9527	950	37.4015	190	7.4803
512/800-M	800	31.496	1060	41.7322	205	8.0709
512/850-M	850	33.4645	1120	44.0944	212	8.3464
512/900-M	900	35.433	1180	46.4566	220	8.6614
512/950-M	950	37.4015	1250	49.2125	236	9.2913
512/1000-M	1000	39.37	1320	51.9684	250	9.8425
51320	100	3.937	170	6.6929	55	2.1654
51322	110	4.3307	190	7.4803	63	2.4803
51324	120	4.7244	210	8.2677	70	2.7559
51326	130	5.1181	225	8.8583	75	2.9528
51328	140	5.5118	240	9.4488	80	3.1496
51330	150	5.9055	250	9.8425	80	3.1496
51332	160	6.2992	270	10.6299	87	3.4252
51334	170	6.6929	280	11.0236	87	3.4252
51336	180	7.0866	300	11.811	95	3.7402
51338	190	7.4803	320	12.5984	105	4.1339
51340	200	7.874	340	13.3858	110	4.3307
51344	220	8.6614	360	14.1732	112	4.4094
51320	100	3.937	170	6.6929	55	2.1654
51322	110	4.3307	190	7.4803	63	2.4803
51324	120	4.7244	210	8.2677	70	2.7559
51326	130	5.1181	225	8.8583	75	2.9528
51328	140	5.5118	240	9.4488	80	3.1496
51330	150	5.9055	250	9.8425	80	3.1496
51332	160	6.2992	270	10.6299	87	3.4252
51334	170	6.6929	280	11.0236	87	3.4252
51336	180	7.0866	300	11.811	95	3.7402
51338	190	7.4803	320	12.5984	105	4.1339
51340	200	7.874	340	13.3858	110	4.3307
51344	220	8.6614	360	14.1732	112	4.4094
